BLOOD TUBE SEALER

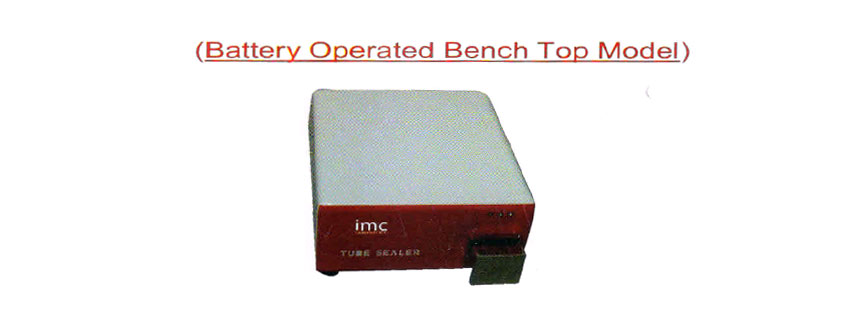

BLOOD TUBE SEALER BBTS-152B




Specification:-

    • Model: : BBTS - 1
    • Sealing time : 0.6 to 2 Second.
    • Tube diameter : 2 to 8 mm with wall thickness of 0.75 mm.
    • Dimension : 300 (L) x 175 (B) x 150 (H) in mm .
    • Construction : Made of Aluminum alloy casting with anti - corrosive chrome plating.
    • Operating temperature : 0 - 40°C (32° to 104°F) .
    • Type of Sealing : RF. Di - electric .
    • Operation No : Fully automated, continuous operation, it is suitable for bench top use. warm up time.
    • Power supply : 220 - 240 volts, 50 Hz, Single phase A.C. Supply. Power consumption : 30 W.
    • Quality of Seal : Wide 3 mm & hermetic seal on the tube for easy separation of two ends.
    • Working : On radio frequency which is MOSFET based output : 70 W & operation frequency 40.68 MHz crystal controlled electrical safety - internal power supply.
    • Security Provision : Shock Proof sealing handle device & plastic cover on the electrodes to avoid contact.
    • Sensitivity : Sealer equipped with sophisticated sensing system.
    • Maintenance : It is easy to clean the electrodes by removing the covering lid on the electrodes.
    • Sealing : Sealer has an intelligent sensing system for better sealing.
    • Weight : 5 Kg (approx).
    • Battery backup : Cadmium free Ni - MH batteries rechargeable and maintenance free battery 12V DC.
    • Capacity : 1100 to 1200 blood tube seals.
