CONTACT SHOCK FREEZER

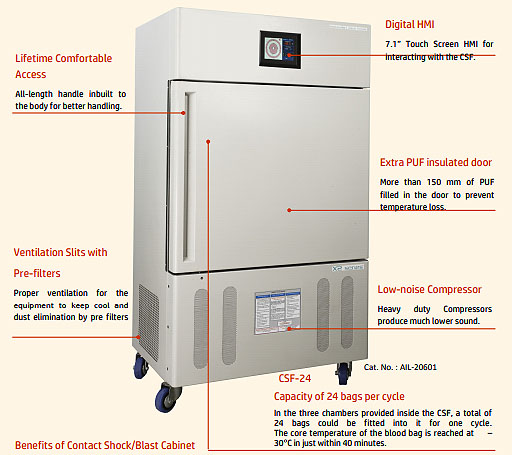

CONTACT SHOCK FREEZER CSF-24B


Specification:-

    • Purpose : To freeze the plasma to a core temperature of –40°C within 40 minutes before its components start to decay.
    • Rapid freezing to core temperature of plasma bag to -40 °C in just 40 minutes .
    • Working Temperature is -80°C, and can be controlled within the range of -80°C to +8°C with 0.1°C accuracy.
    • Temperature controlling and monitoring done by high-end 7.1” Touch Screen HMI with data storage in form of charts, and equipped with e-mailing facility.
    • Constructed in double wall CFC free PUF (Polyurethane foam) Insulated.
    • PUF thickness > 120 mm.
    • 3 shelves available, with 3 cooling plates and 3 motor controlled movable plates.
    • Inner body made with Stainless steel 304 grade 22 SWG and outer body made with galvanized pre painted sheet (GPPS) 18 SWG with high impact powder coating.
    • External Size : 1000 x 680 x 1790 mm (W x D x H).
    • CFC - HCFC free refrigerant. Hermetically sealed refrigeration compressor are used in cascade refrigeration.
    • Hotline around the mouth of the cabinet to prevent moisture condensation.
    • Mounted on lockable castor wheel.
